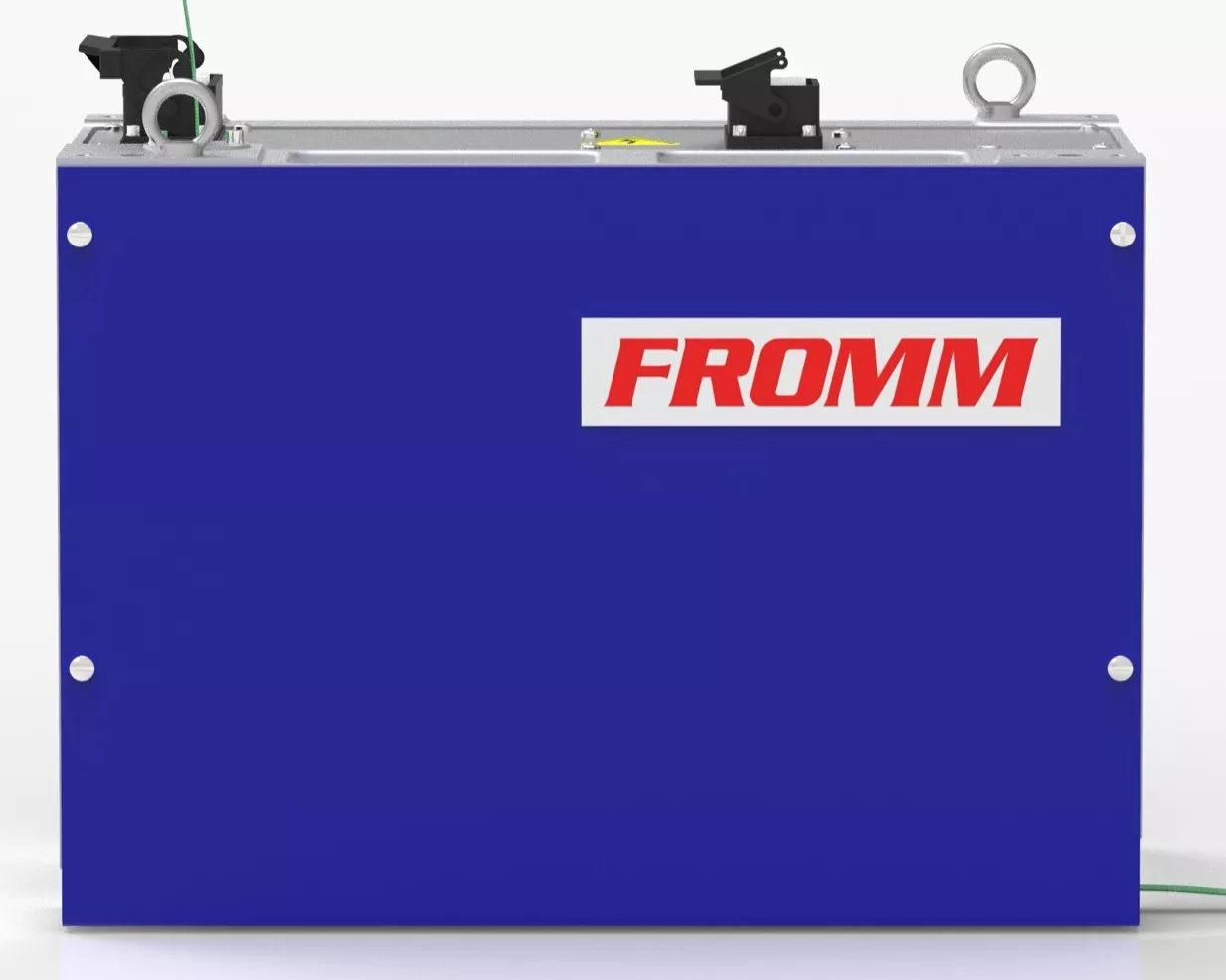

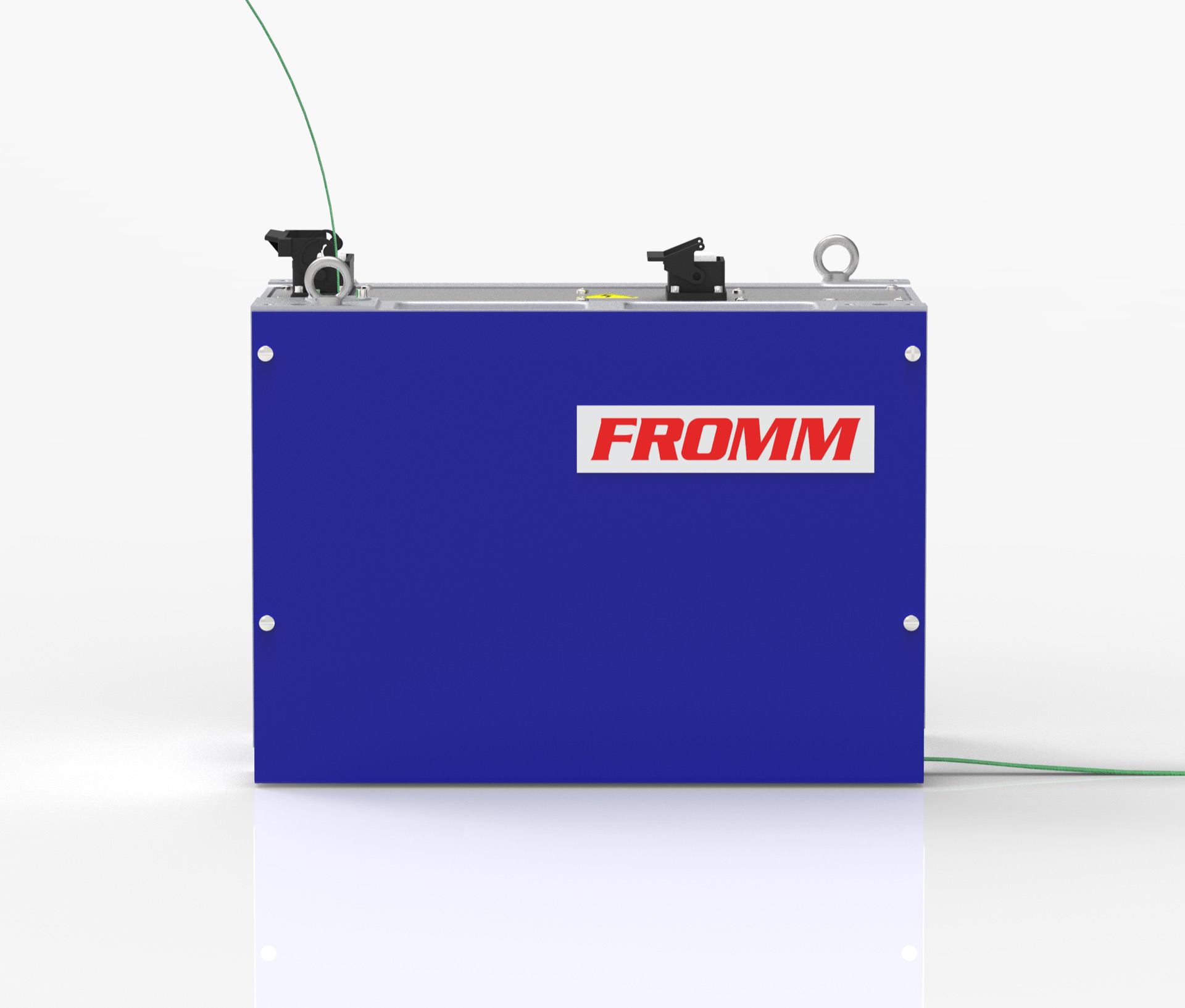

MH550 Automatic Plastic Strapping Head
MH550 Automatic Plastic Strapping Head

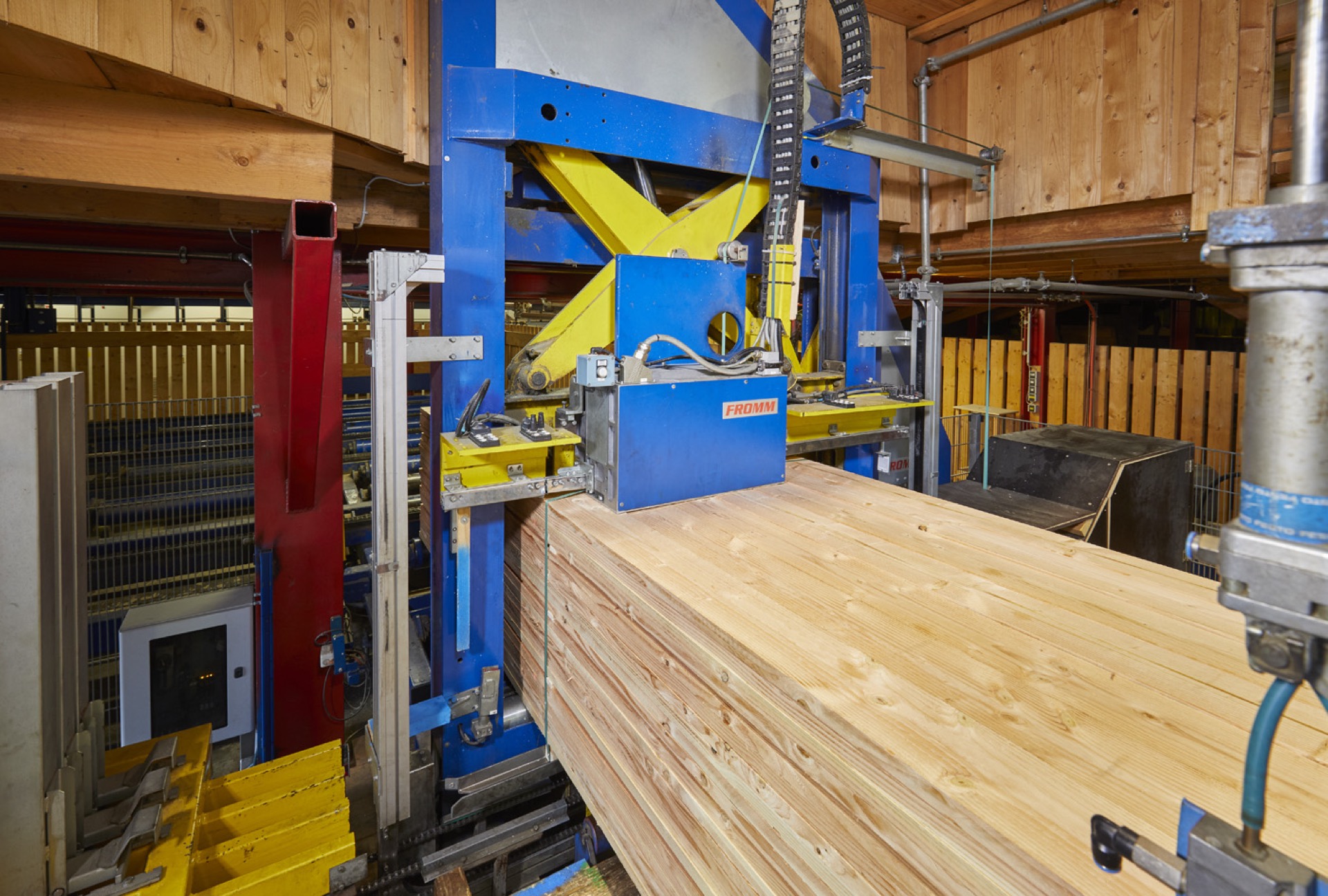

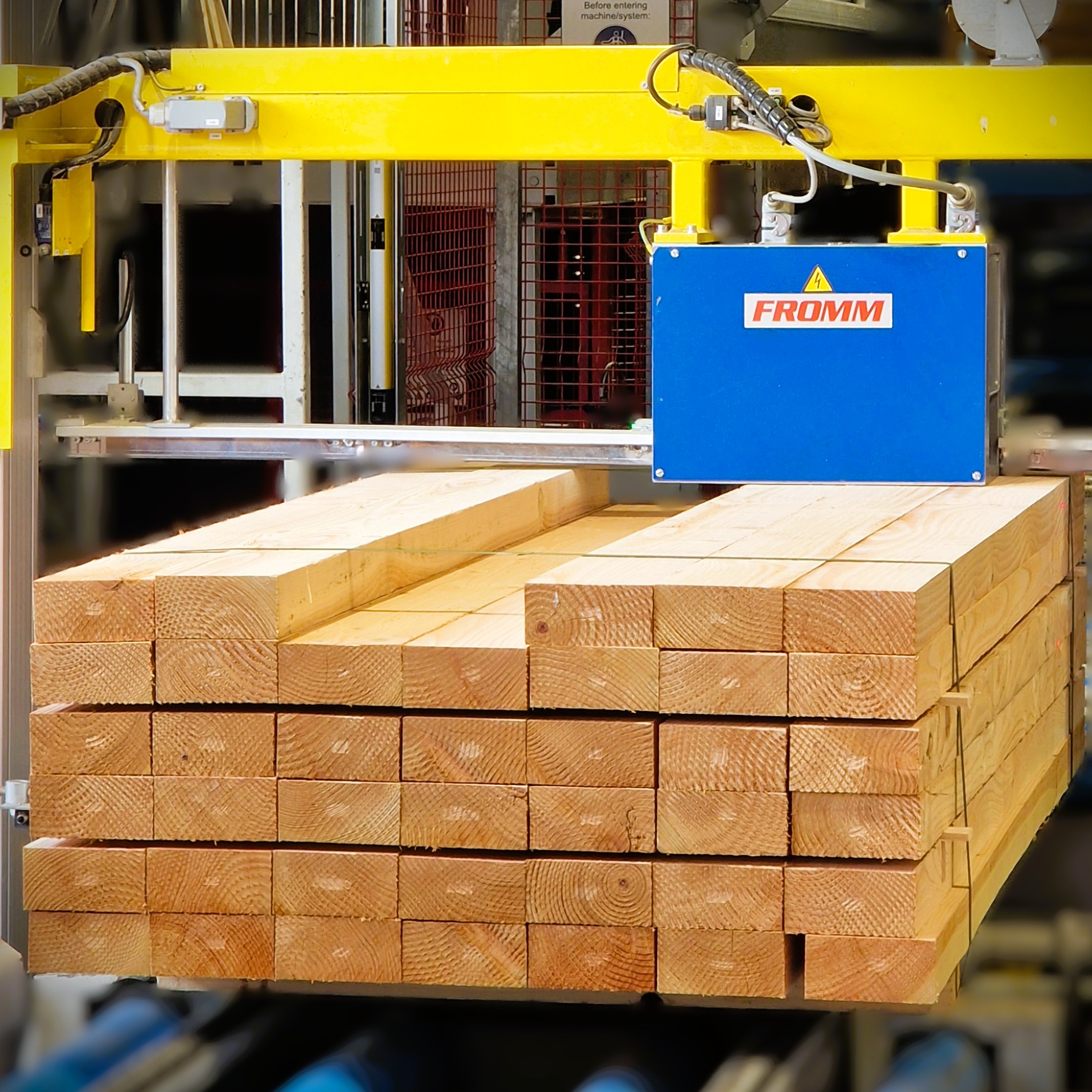

Compatible with PET & PP Strap from 9-19mm wide, the MH550 is suited to Automatic strapping of timber, food & beverage cans, paper, corrugated, glass & logistics. This automated system will ensure increased throughput and efficiency.
Features
- Compact and modular design
- One piece of aluminium cast housing
- Strap tension up to 3500N, adjustable
- Strap guide open feature
- Well proven separate feeding, tensioning and friction weld sealing systems
- High consistent seal efficiency because of environment temperature monitoring
- Use of state-of-the-art manufacturing, controlling and material technology
- Three side suspension points and plug connections for easy integration
- Long life and maintenance friendly, resulting in high availability
Benefits
- Low maintenance
- Long service intervals
- Proven FROMM technology
- Can be retrofitted into other systems
- Low cost of spare parts
- Excellent seal efficiency
Technical Specifications
- Compatible Strap TypesPolyester (PET)
- Strapping Dimensions8.00 – 19.00mm (Width) x 0.40 – 1.00mm (Thickness)
- Sealing MethodHeat Welding
- Strap Tension3500N (Adjustable)
- Feed/Retract Speed5.3 Metres per second
- Tension Speed105mm per second
- Package Sizemin. Width 100mm x Height 250mm
- Power Supply230V
- Control Voltage24V DC
- DimensionsLength 500mm x Width 300mm x Height 398mm
- Weight78.5KG
Datasheet
-
- MH550 Download
