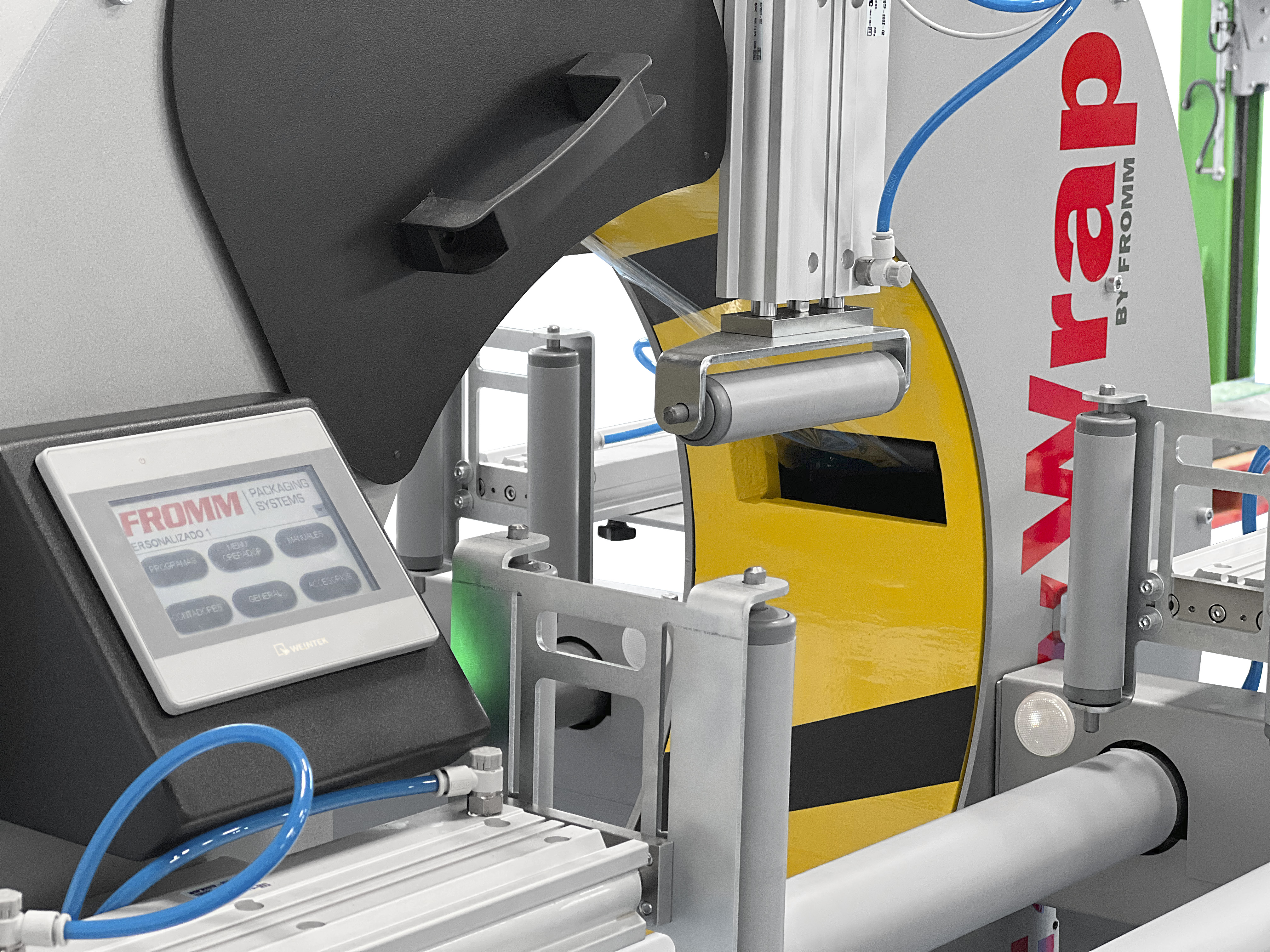

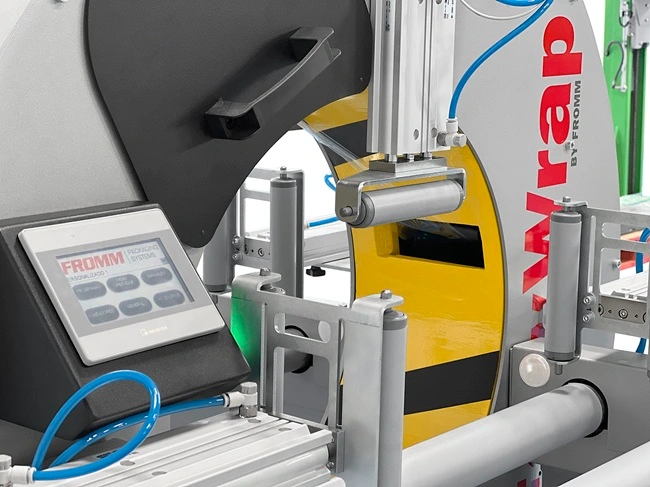

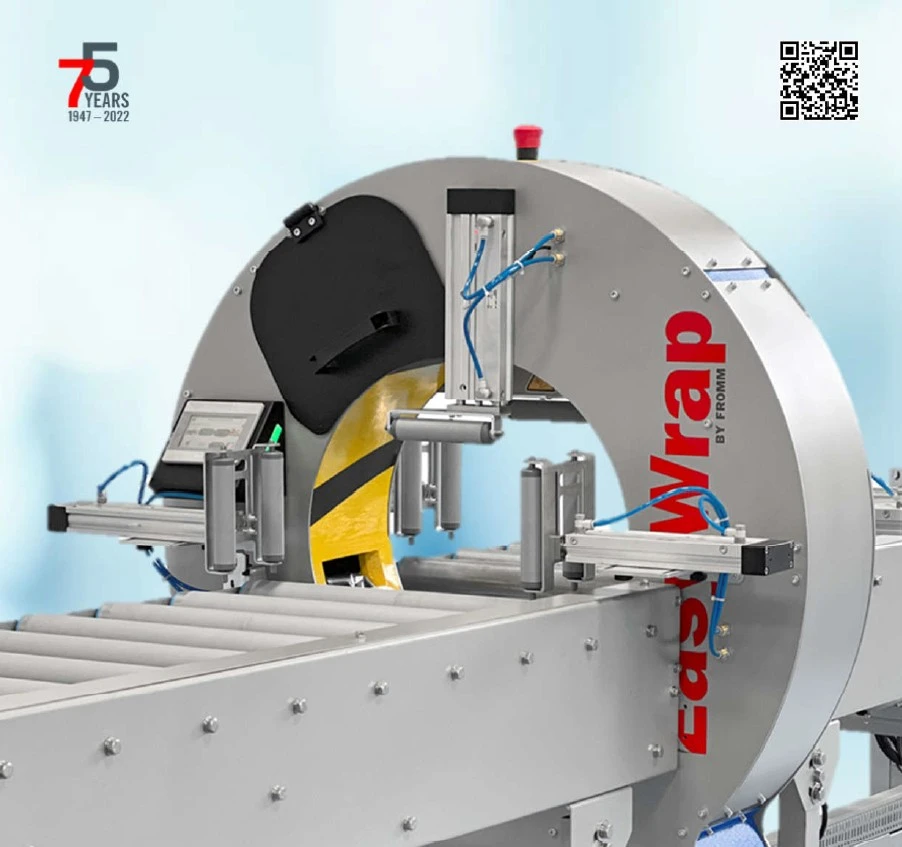

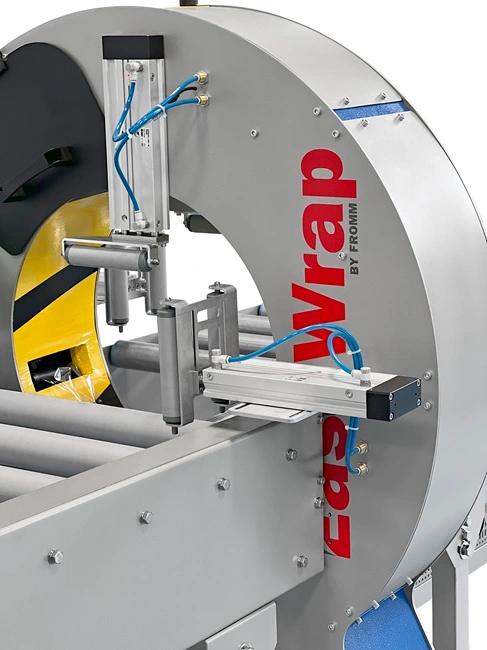

FV350/50 Automatic Orbital Stretch Wrapper
FV350/50 Automatic Orbital Stretch Wrapper
The FROMM FV350/50 Automatic Orbital Stretch Wrapper with 500mm diameter ring is ideal for stretch wrapping long products. This fully automatic, programmable machine can be supplied as a stand-alone automatic machine or integrated into an existing packaging line
Extremely low maintenance, the FROMM FV range is exceptionally easy to install & operate – Plug and play, no fuss.
Optional extras include: top presser, side rollers, driven conveyors, automatic driven rollers, and a short products bridge.
The following products can easily be wrapped using a spiral wrapper: aluminium profiles, architraves, handrails, ladders, MDF mouldings, pipes, racking, radiators, rods, skirting boards, tubes, window frames.
Features
- Double reel film dispensers
- 500mm wrapping ring
- Adjustable speed (RPM)
- Mechanical film break
- Automatic film cutting at end of wrap cycle
- Six sided wrapping programs available
Benefits
- Twin wrapping heads for optimal function
- High production throughput
- Easily accommodate different products
- Programmable wrapping functions
Machine Specifications
- Ring Diameter500mm
- Max Product SizeH: 250 mm, W: 490 mm
- Min Product SizeH: 50 mm, W: 50 mm
- Max Rotating Speed180 RPM
- Max Product WeightDependent on conveyors
- Film Width100mm (38mm core)
- Power240 Volts
- Air Supply Needed6 bars
Machine Options
- ConveyorsInfeed and Outfeed
- Automatic Film Cut and ClampStandard
- Top Press and/or Side GuidesAvailable
- Bridge for Short ProductsAvailable
- Safety SystemAvailable
