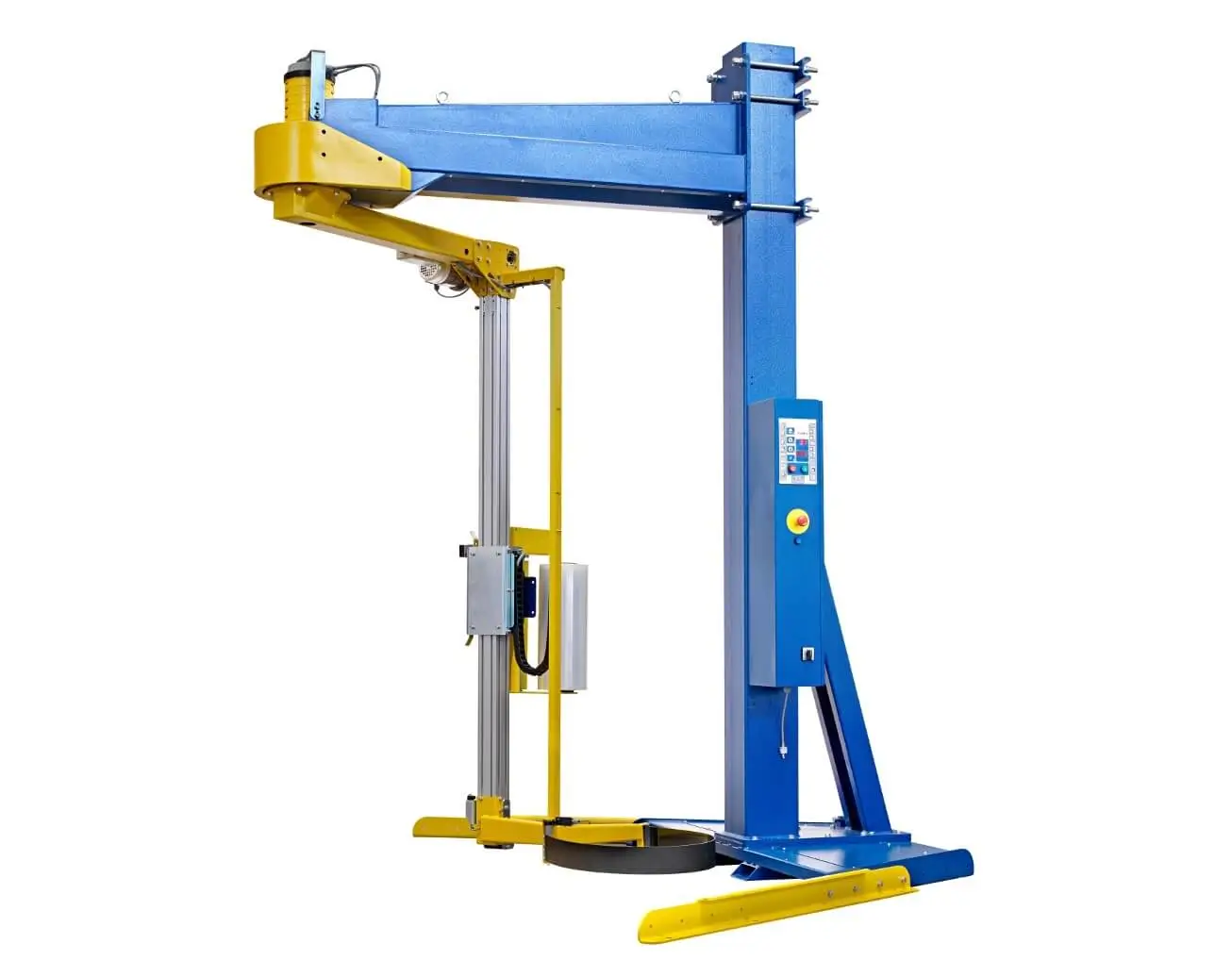

FS500A Automatic Rotary Arm Stretch Wrapper

FS500A Automatic Rotary Arm Stretch Wrapper

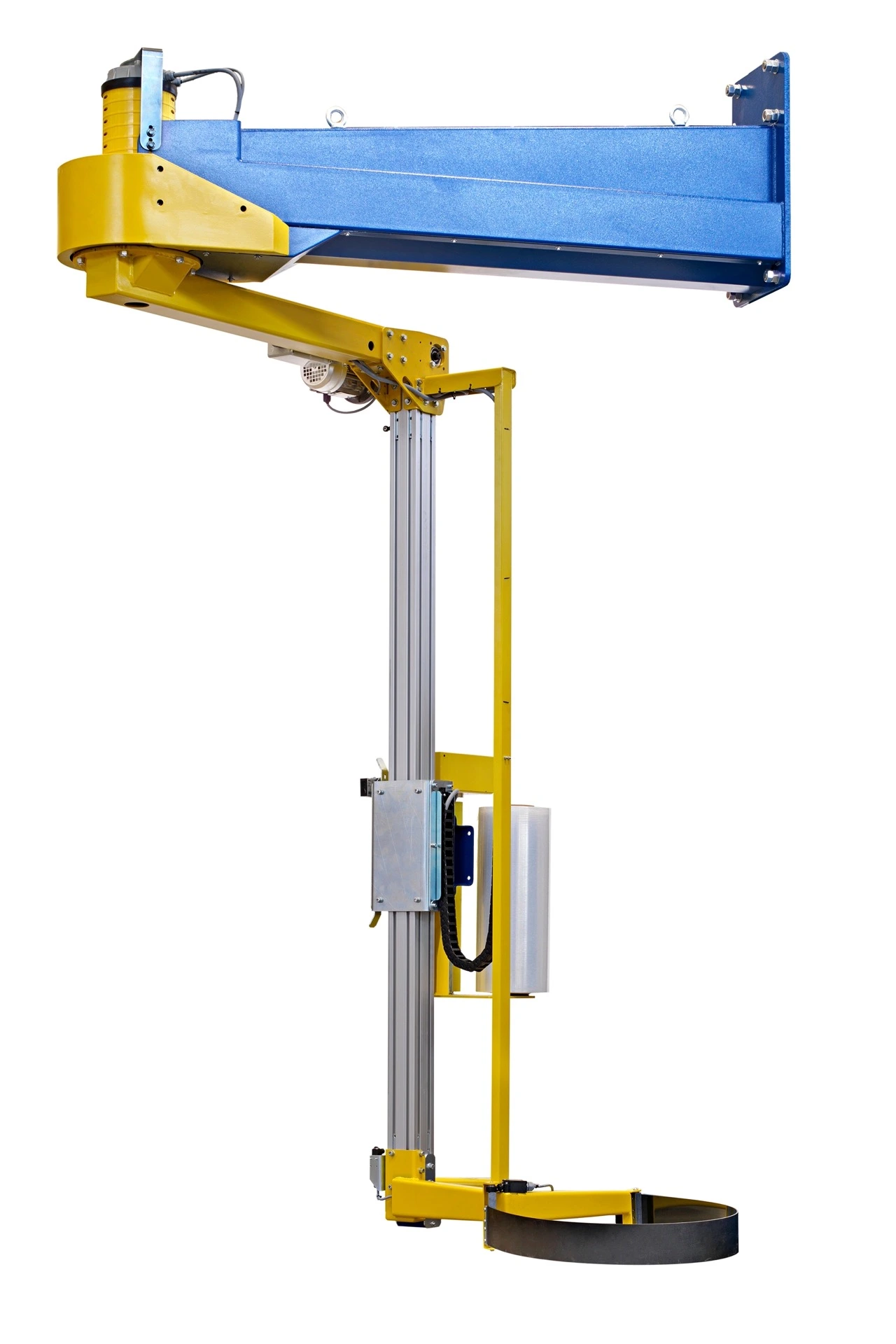

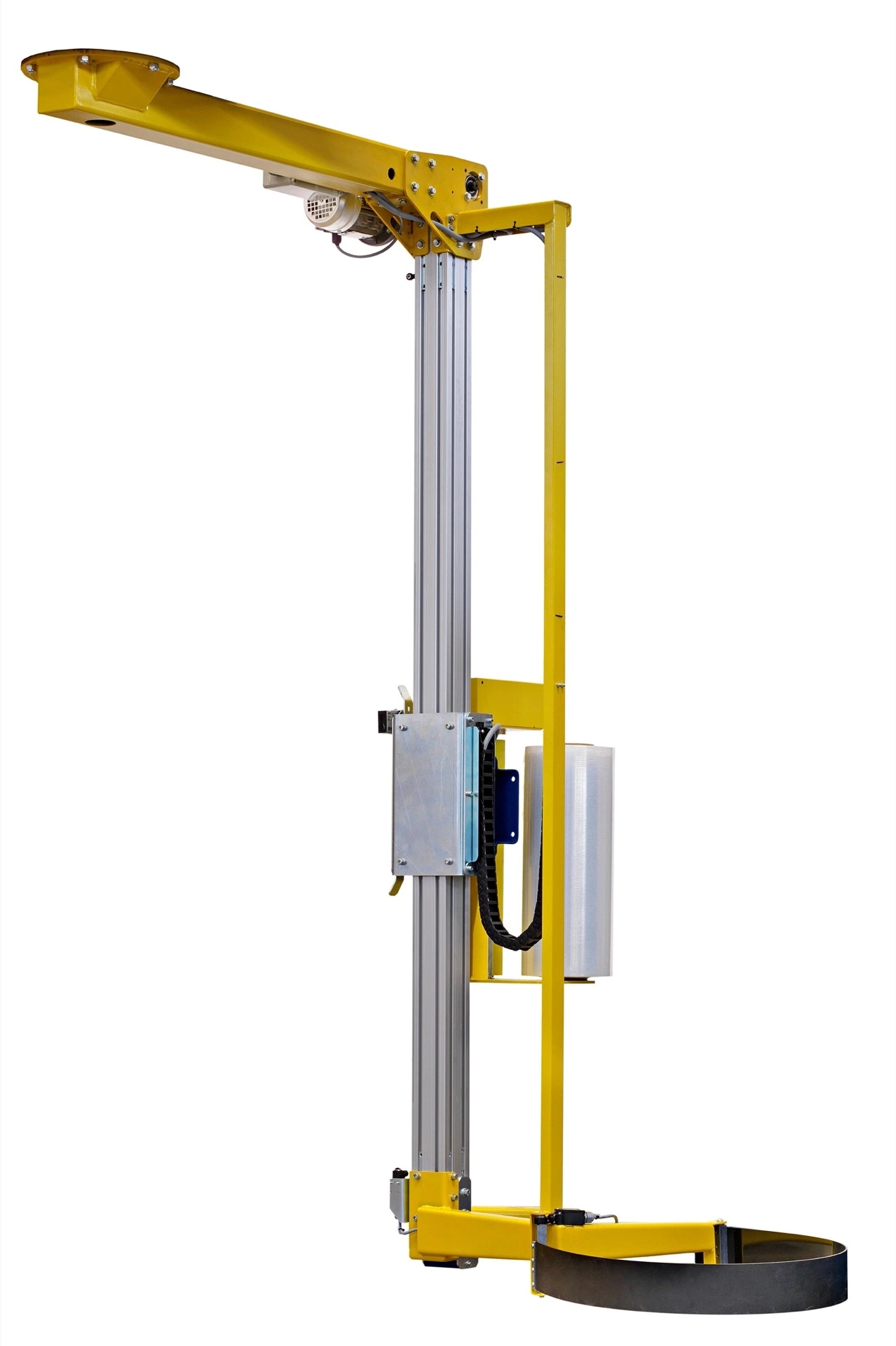

Like most FROMM machines, the FS500A rotary arm wrappers are modular in design. This enables customers to build their own FS500A, in accordance with their requirements, from light and unstable to heavy and large loads of different kinds. Depending on requirements, a choice can be made between wall mounting, floor mounting or ceiling mounting, with or without conveyors. The FS500A offers FROMM customers a wealth of options. The choice of 4 different types of film stretch carriages and extensive programming allows the operator to work even with thinner, pre-stretched or net films. Our wrapping specialists are happy to help you find the best solution for your situation.

The FS500A is particularly suitable for medium to large volume packaging locations within e-commerce, contract packaging, logistics, clothing, metals and non-ferro, corrugated board, parts service centres, electronics and household appliances, chemicals, paper and printing, panels, cleaning products, tableware, agricultural and horticultural products.

quote request

Features

Film attachment, clamping and cutting device
Operating Panel for Automated Solutions

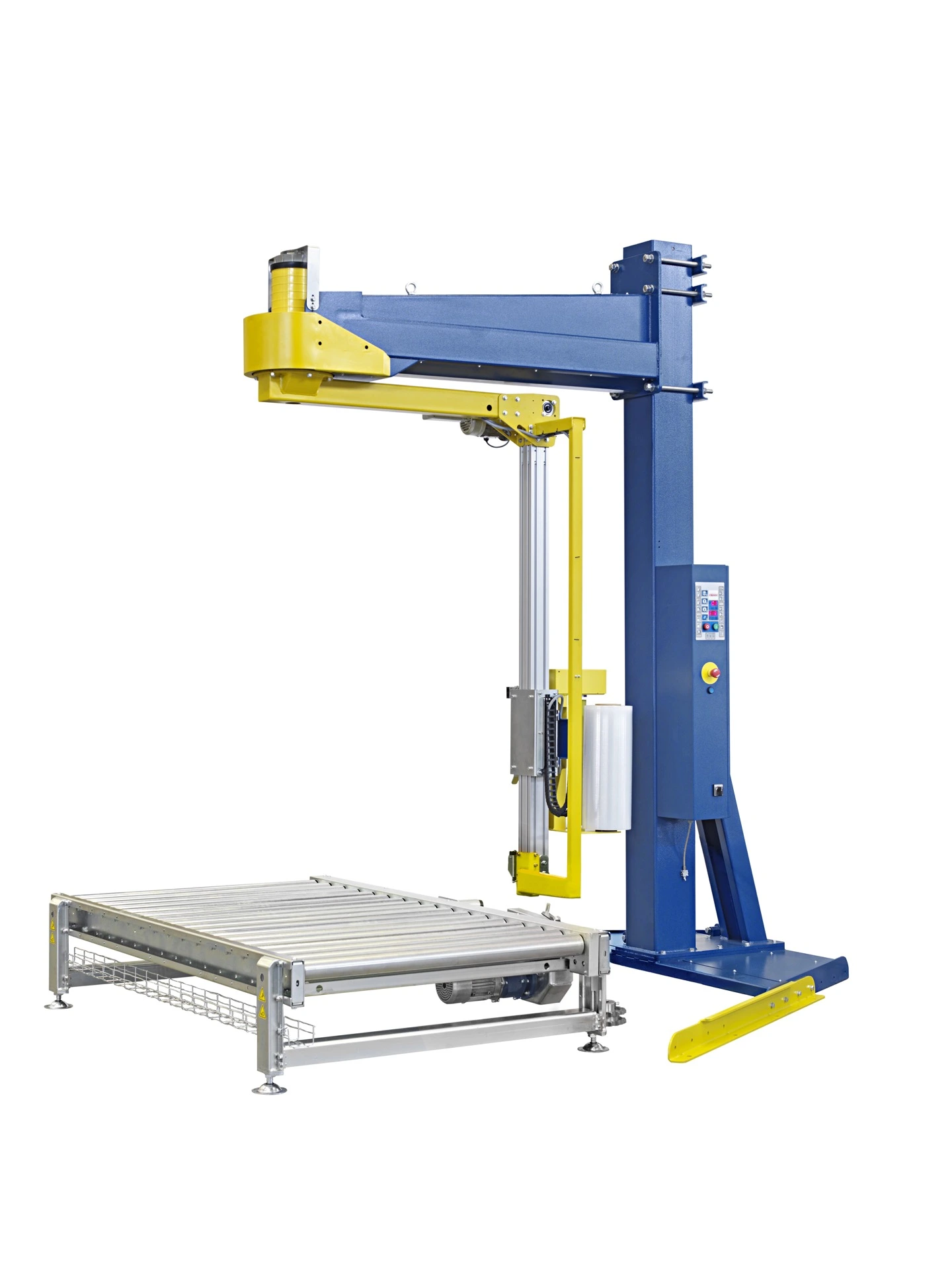

Conveyors and Turntables
Additional Control Solutions
Floor mounted, wall mounted or ceiling mounted arms for pallet heights up to 3000mm
Choice of 5 arm sizes for pallet dims up to 1700x1700mm (dia .2400mm)
Choice of 4 film carriages (mechanical or magnetic brake, 1-motor or 2-motor pre-stretch)
Up to 99 programmable wrapping cycles incl. top sheet mode
Options include top pressure plates, remote control, Siemens PLC, Conveyors, Full line integration.

Brochure

FS500A Brochure Download
