FV300/90 Semi-Automatic Orbital Stretch Wrapper

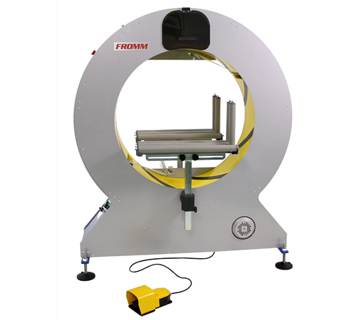

FROMM’s FV300/90 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. 350mm) through it’s 900mm diameter ring, for example pipes, tubes or rods.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install & operate – Plug and play, no fuss.

Optional extras include: automatic film clamp and cut, gravity roller conveyors, side verticle rollers, and a short product bridge.

star-icon.gif Features
  • Double reel film dispensers
  • Adjustable speed (RPM)
  • Mechanical film break
  • Manual start by foot switch
  • Top pressers available to hold load in wrapping cycle
plus-icon.gif Benefits
  • High speed throughput
  • Easily accommodates different products
  • Plug and play technology
  • Fast roll changes

Technical Specifications

Machine Specifications

  • Ring Diameter 900mm
  • Max Product Size H: 640mm, W: 890 mm
  • Min Product Size H: 200 mm, W: 200 mm
  • Max Rotating Speed 90 RPM
  • Max Product Weight Dependent on conveyors
  • Film Width 100mm / 166mm
  • Power 240 Volt
  • Air Supply Needed 6 bars

Machine Options

  • Conveyors Infeed and outfeed
  • Automatic Film Cut and Clamp Available
  • Top Pressers Available
  • Bridge for Short Products Available
  • Safety System Available
