CE450 DDX

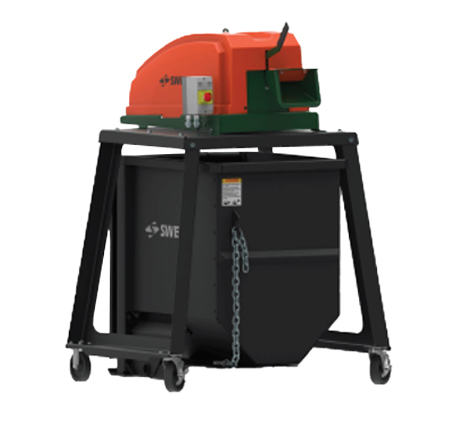

The Model CE450 DDX boasts power alongside a dual driven feed works. Driving both feed rolls on the chopper allows the unit to process scrap quickly and efficiently.

The Model CE450 DDX is Sweed's chopper of choice for companies processing large volumes of scrap plastic or PET strapping. The chopper is extremely versatile and can be customized for inline automated production applications requiring tension control and custom scrap lengths. The Model CE450 DDX is designed to fit on several Sweed stands that can accommodate a variety of scrap collection containers. Custom stands and additional safety upgrades are also available.

Material Reference

The recommended model of scrap chopper is determined by scrap size, scrap volume, and requested custom features. The following are materials commonly processed through the CE450 DDX. Please consult a Sweed representative to determine the appropriate scrap chopper for your application.

  • Up to 25.4 mm x 0.79 mm steel branding with clip
  • Up to 25.4 mm band saw blades
  • All sizes of plastic/PET strap
  • Lightweight wire
  • Mild steel flat bar
  • Small tubing
  • Slitter trim



star-icon.gif Features
  • CE compliant
  • Easy to reach "Feedworks Release" hand level
  • Infeed restrictor plate for safety
  • Knives have 4 usable edges and can be rotated (3 additional times) for extended life
  • Hinged front guard allows for easy routine maintenance
  • Made and supported in the USA
  • One year warranty

Performance data

  • Electric Motor 0.73 kW
  • Electrical Options >> 1-Phase 220/Volt - 50Hz
    >> Additional non-standard voltages available
  • Infeed Speed 36 meters per minute
  • Cut Length +/- 76 mm
  • Infeed Opening 85 x 25.4 (mm)

  • No. of Stationary Knives 1
  • No. of Rotating Knives 1, 2, 3 or 4
  • Overall Dimensions 91 x 66 x 33 (cm)
  • Machine Weight +/- 159 kg
  • Shipping Weight +/- 198 kg

Brochure

Strap Chopper Model 450 DDX Brochure Strap Chopper Model 450 DX Brochure
